Adding Rive files

To add a .riv file to an Unreal project, simply drag it into Unreal’s Content Browser. Once dropped, a Rive File, Rive Texture Object, and Widget Blueprint asset will be automatically created. A RiveFile is a wrapper component configuring the Rive graphic to display, using a backing .riv file’s data. It contains the following properties:
  • Artboard name: The artboard to load.
  • State machine name: The state machine to play.
  • Rive fit type: How the graphic should fit in the available sizes (see Fit).
  • Size: The size of the underlying render target to which the graphic is drawn. The default value is equal to the artboard size, as set in the Rive editor.
  • Other texture properties.

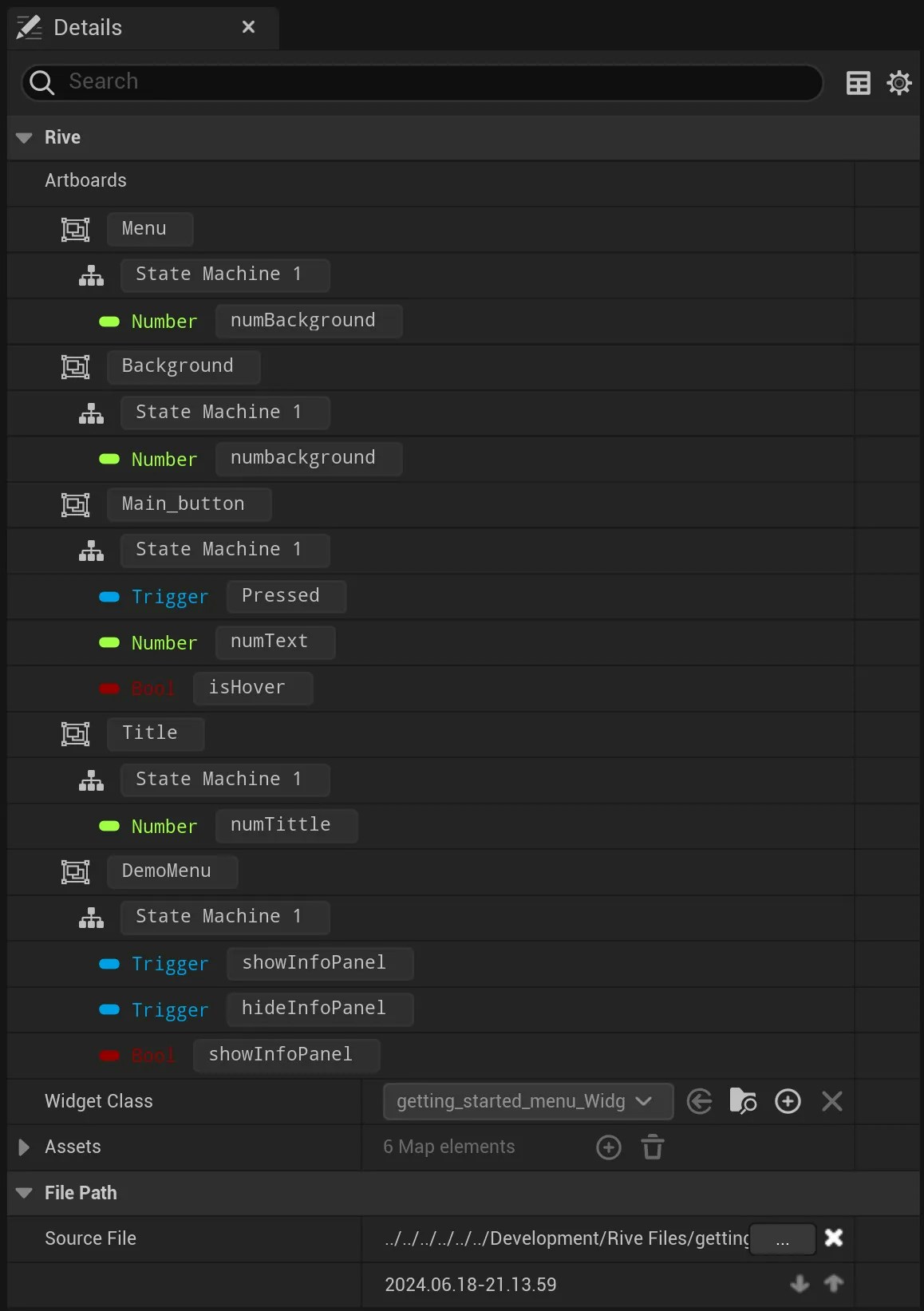

An important concept to understand is that the RiveFile contains the underlying artboard and state machine that the Rive runtime uses. You can view the details of a RiveFile by double-clicking on it in the content browser and examining the Details pane. You can see all of the artboards, state machines, triggers and inputs included in the file. Image

​
RiveTextureObjects

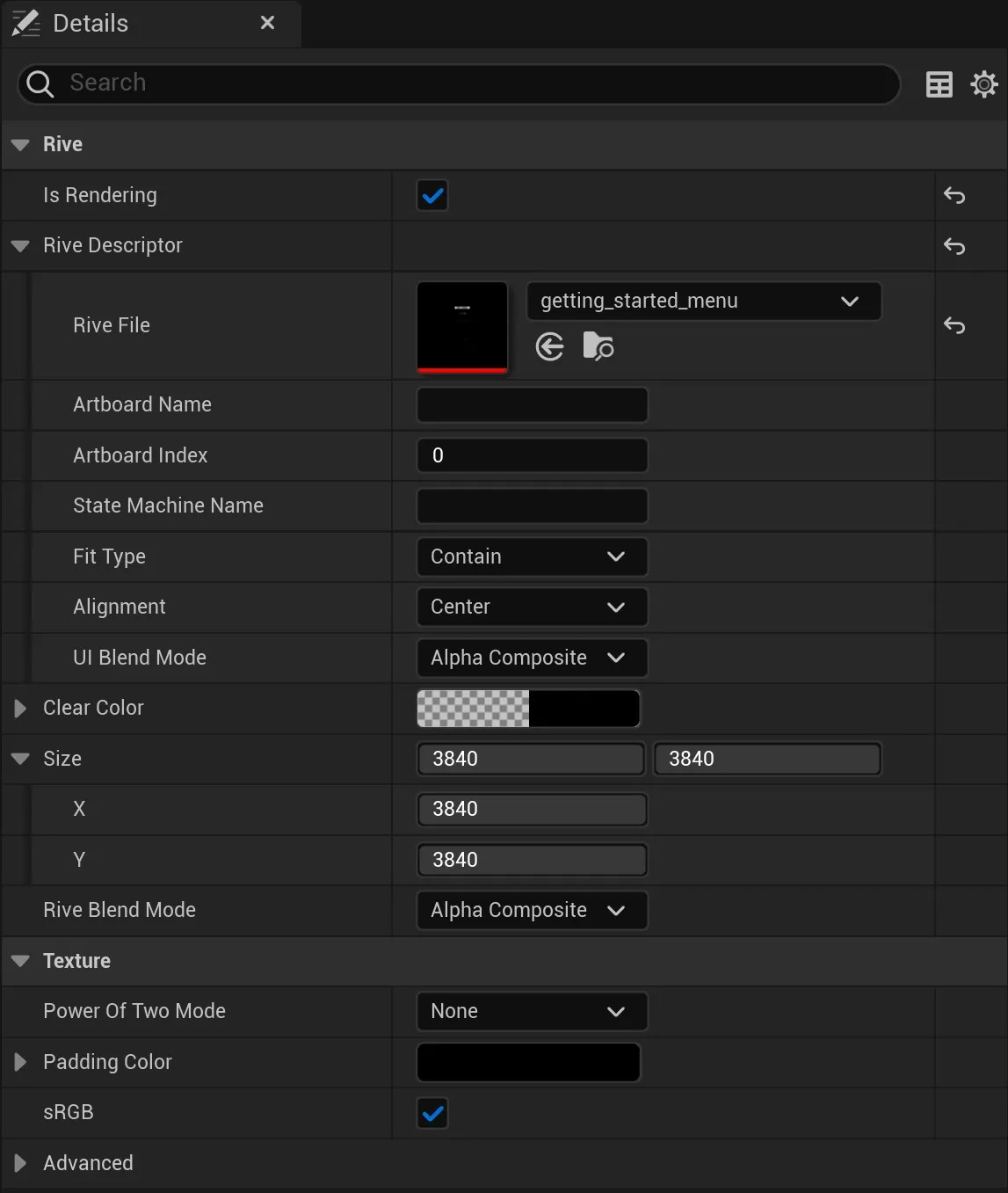

While a RiveFile contains the data of a Rive asset, it is the RiveTextureObject that handles running the animations and handling state machines. Every RiveTextureObject runs independently, even if created from the same RiveFile. When you double-click on a RiveTextureObject you can examine and change various values associated with that object: Image Leaving the Artboard name or State Machine name blank will use the default values.
Note that the size attribute determines the width and height of the underlying render texture. A larger size improves the quality but increases the memory usage.

​
Create Rive Widget, Create Rive Texture Object, and Reimport

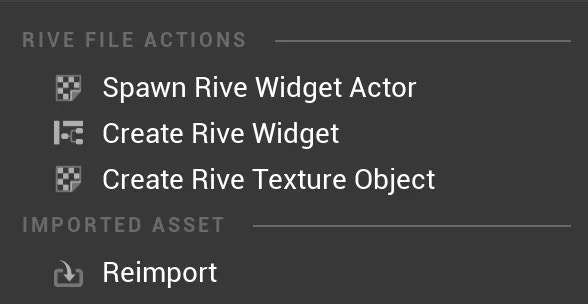

Right-click a RiveFile to access common actions: Image Selecting “Spawn Rive Widget Actor” will create an Actor in your Level. Playing the Level will display the Rive file as a UMG Widget. Alternatively, you can spawn a widget actor by dragging and dropping the RiveFile asset into the level. Note that the location of the actor in the scene does not affect it’s display. If you need more than the default Rive Widget or Rive Texture Object, you can create them from this menu. You can also Reimport your Rive file to get updates made to the file outside of Unreal.

​
Create a material asset

You can easily create a material asset from a RiveTextureObject:
  • Right-click and select “Create Material”

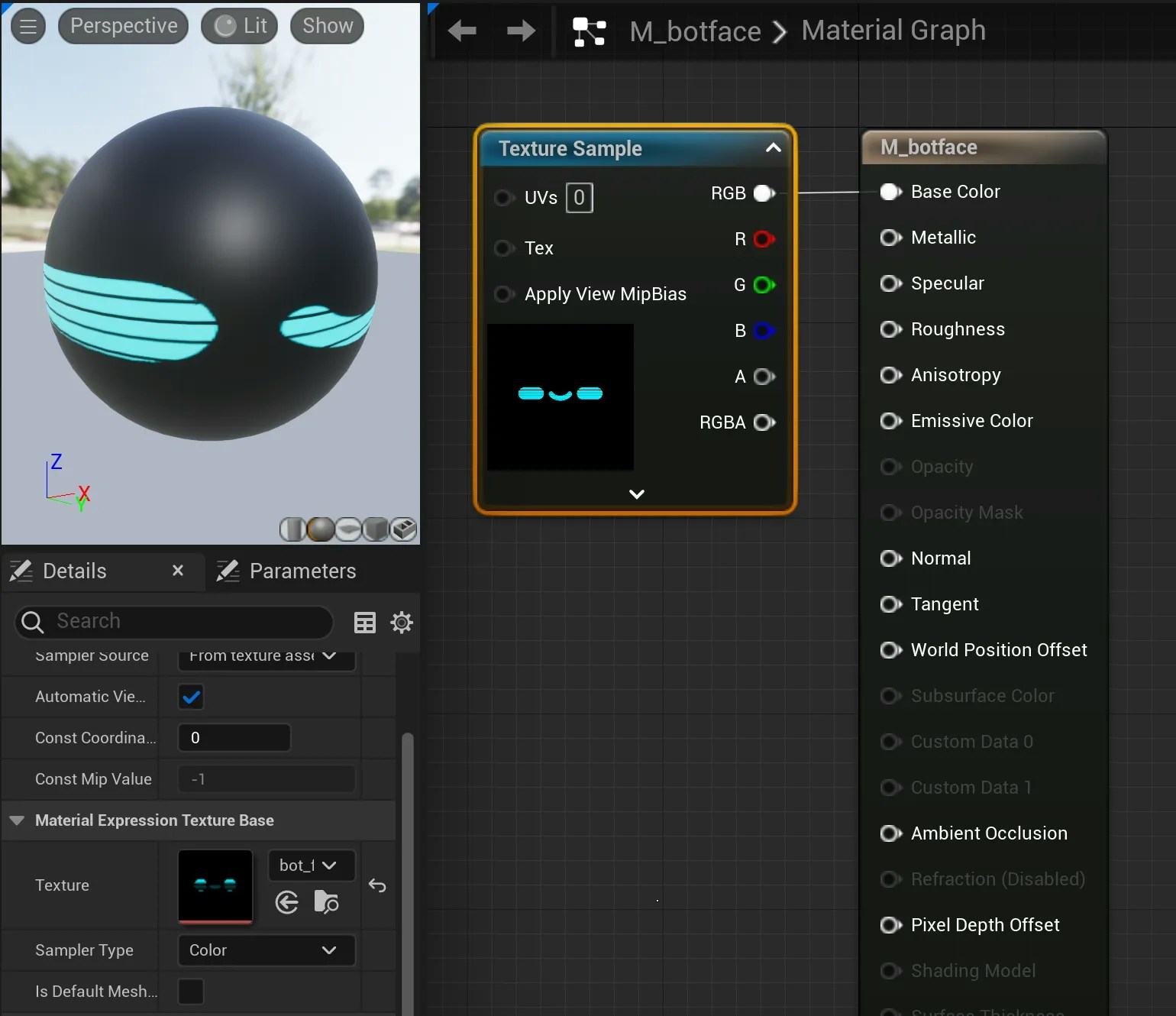

The created material asset uses the selected RiveTextureObject as a texture. Image

​
Displaying

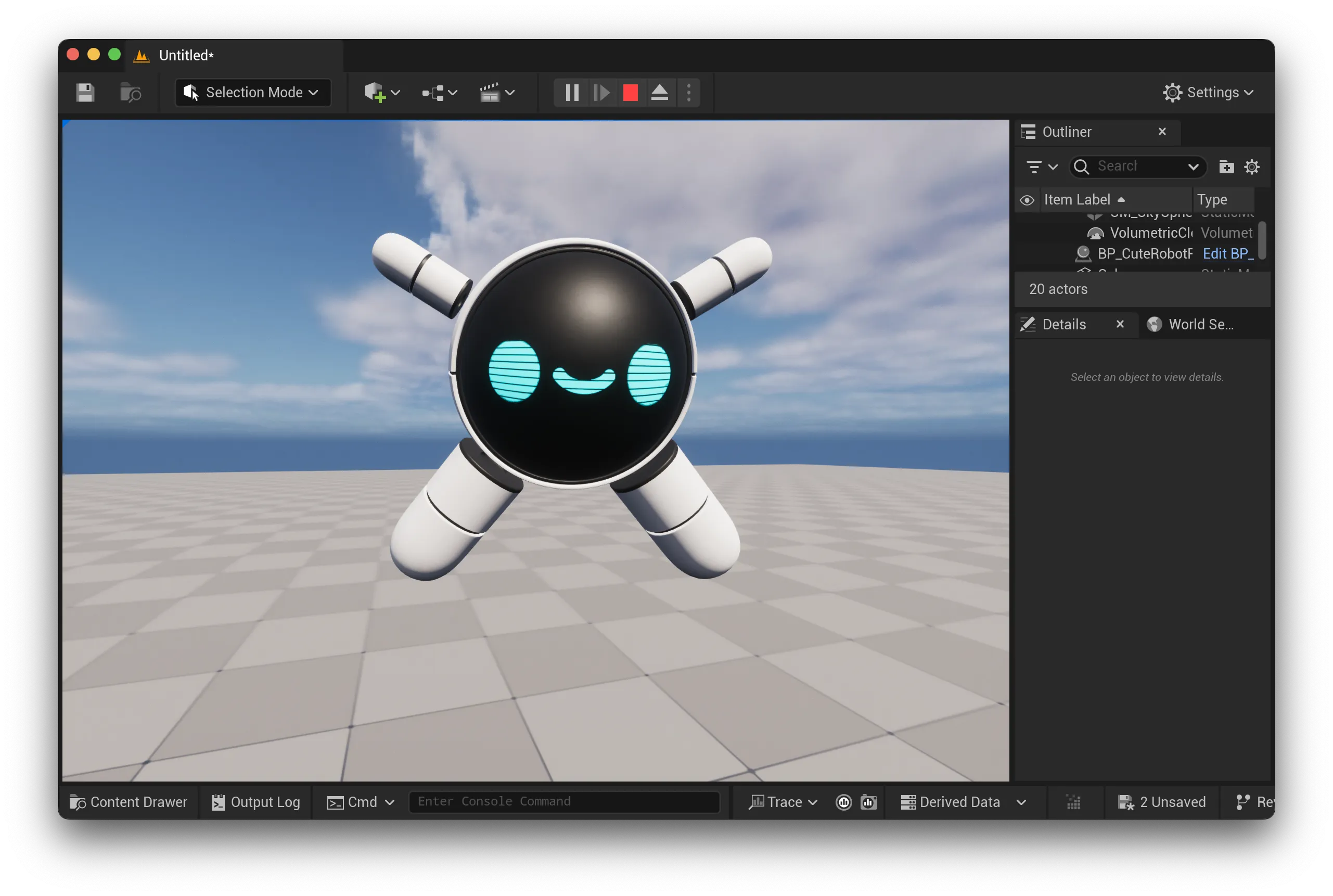

This material can be added to a 3D mesh to be rendered in the scene, just like any other material. Image

​
Adding Rive to UMG

You can easily create a Widget Blueprint from a RiveFile:
  • Right click the RiveFile and select “Create Rive Widget”

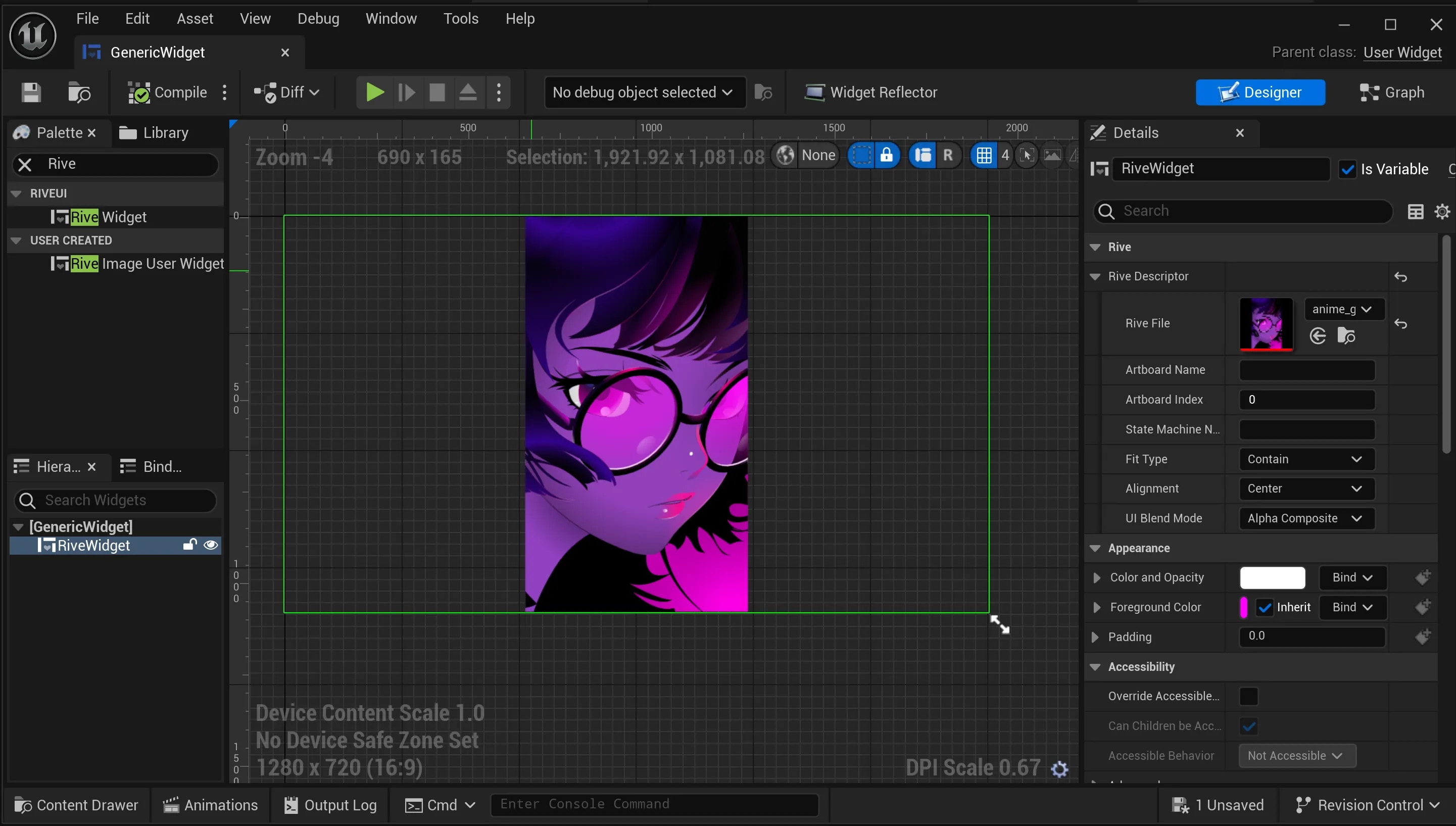

This will automatically create a Widget Blueprint using the selected RiveFile. Alternatively, a Rive Widget can be added from the UMG Palette and then selecting the underlying RiveFile to use as a reference. This is done in the “Rive Descriptor” section in the Details pane. Leaving the Artboard name or State Machine Name blank will cause defaults in the file to be used.
Be sure to click Compile to make the graphic visible.
Listeners (pointer events) are disabled in this view. This means the Rive graphic is not interactive within UMG.

​
Accessing RiveWidget in Blueprint

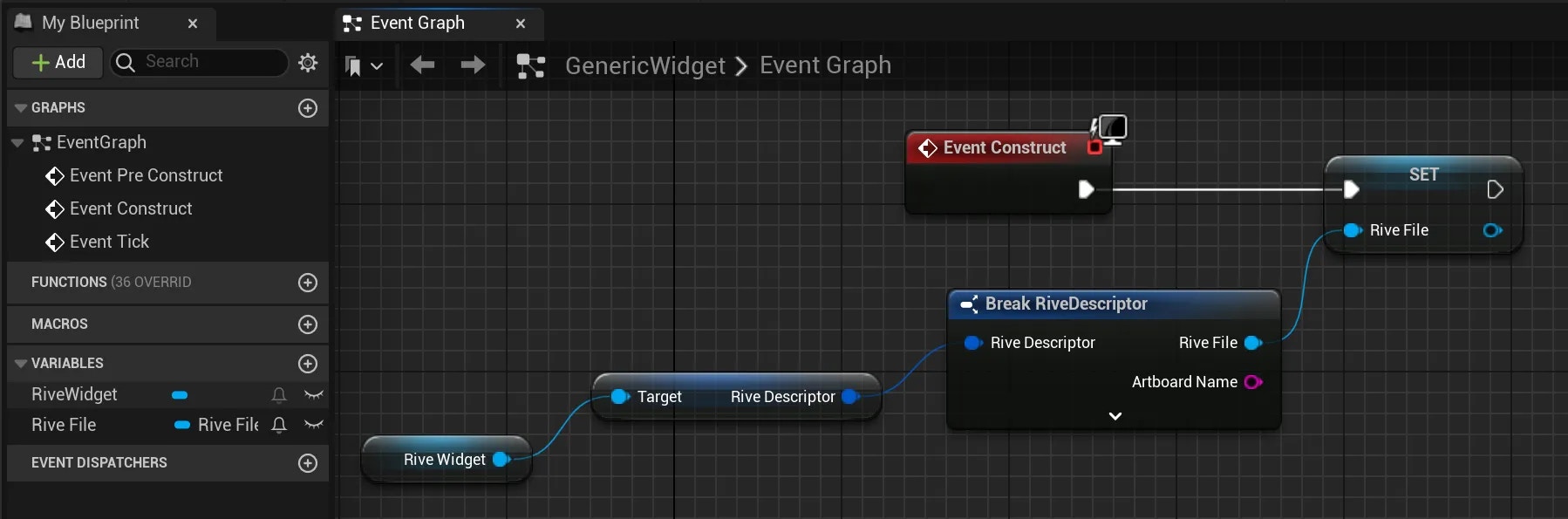

The RiveWidget can be accessed through Blueprint, if the Is Variable toggle is set (default is checked). Image

​
Displaying

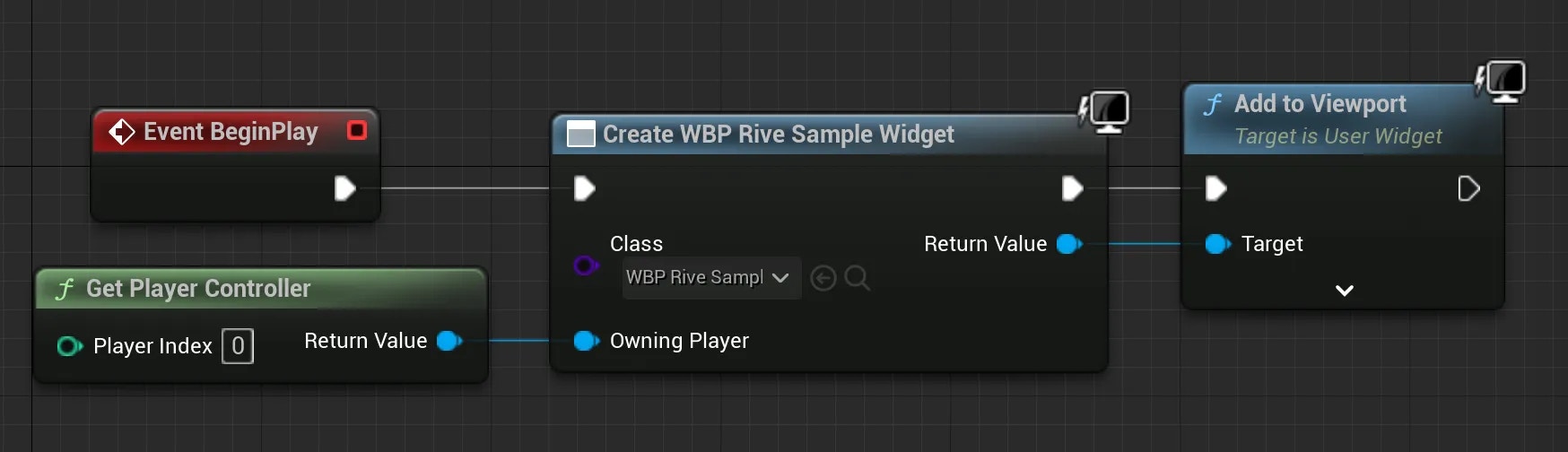

Once a Widget Blueprint is configured, you only need to add it to the Viewport. In this example we’re creating a new Actor and adding the following. Image Once the actor is added to the game and you enter play mode the animation will function exactly as it does in the Rive Editor. See the following sections for more advanced usage.

​
Instancing a RiveTextureObject

If, for example, your .riv file contains multiple different artboards, or if you want to create unique instances of the same artboard and state machine combination, you can easily do so by instancing new RiveTextureObjects through the editor:
  • Right-click a RiveTextureObject and select “Duplicate”
These new instances use the same underlying .riv file data; however they are unique instances and can be configured with the available properties, such as artboard, state machine, size, etc. Each RiveTextureObject instance contains a unique artboard and state machine instance that can be updated and used independently. An artboard and state machine can be instanced manually through Blueprint as well. Later sections will demonstrate how to do this. How To Use Imported Rive Objects in Unreal
