Converters transform values before they are applied to a binding. Use them to adapt your data to match the property you’re binding to—for example, converting numbers to strings, mapping values between ranges, or smoothing changes over time.

​
Adding a Converter

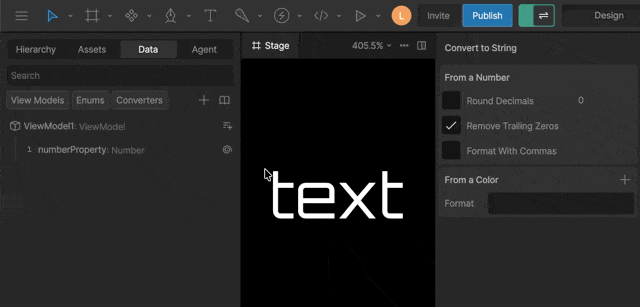

Build and apply a converter
1

Create a Converter

In the Assets panel, click the + button and select a converter type.
2

Set Converter Options

With the converter selected, update the settings in the right sidebar.
Most options can be data bound.
3

Apply your Converter

When setting or updating a binding, set the Converter field..

​
Converter Types

Converters can be used individually or combined into groups to perform more complex transformations.
CategoryConverterDescription
StringPadAdd padding to a string
TrimRemove leading or trailing whitespace
Convert to StringConvert a value to a string
Remove Trailing ZerosRemove unnecessary decimal zeros
NumberRoundRound to the nearest value
CalculatePerform simple calculations
Range MapMap a value from one range to another
InterpolatorSmoothly interpolate between values
FormulaEvaluate a custom expression
Convert to NumberConvert a value to a number
BooleanToggleInvert a boolean value
ListNumber to ListGenerate a list of components based on a number
List to LengthGet the number of items in a list
ColorInterpolatorSmoothly interpolate between colors
ScriptConverter ScriptsCreate your own custom converters

​
Pad

Pads a string to a target length by repeating a value at the start or end. If the string is shorter than the specified length, the pad value is repeated and added until the target length is reached. Example:
  • Value: 1
  • Pad: “0”
  • Direction: Start
  • Length: 3
Result: “001”

​
Range Map

Maps a number from one range to another. Use Range Map when you want to take an input value and convert it into a different scale. Example Convert a slider value (0–100) into an opacity value (0–1):
  • Input: 50
  • Input range: 0 → 100
  • Output range: 0 → 1
Result: 0.5

​
Numeric Interpolator

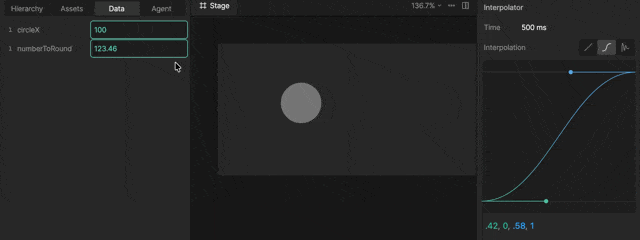

interpolate a shape Smoothly transitions between number values over time, easing changes instead of jumping instantly.

​
Formula

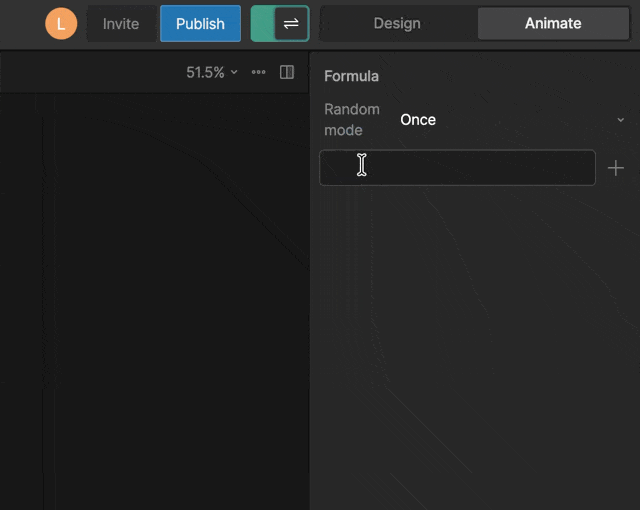

Generate a formula Formula lets you perform custom calculations using values from your View Model or the input. You can create a formula in two ways: Writing it directly
random({{NumberConvertersVM/circleX}} / {Input}) + 2
{Input} refers to the incoming value, while {{...}} references View Model properties.
Using the editor Click the + button to add values, operations, and functions. This builds the formula for you and generates the equivalent expression.
Formulas don’t need inputsThe following formula would output a random number, regardless of input.
  random(2)

​
Random Mode

When using random() in your formula, the Random Mode determines when a new random value is generated.
  • Once — Generates a random value only when the formula first runs
  • Source Change — Generates a new value each time the input changes
  • Always — Continuously generates new values while the input changes and during interpolation

​
Number to List

The Number to List converter allows you to generate a specified number of Components based on a number. See Lists for more information.

​
Color Interpolator

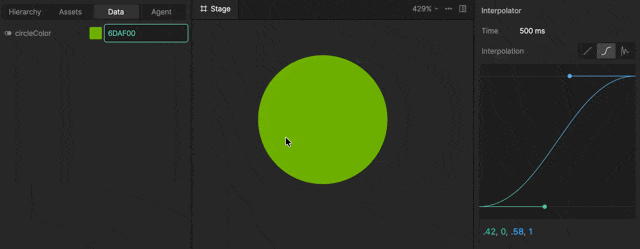

interpolate a color Smoothly transitions between color values over time, easing changes instead of jumping instantly.

​
Converter Scripts

Scripting lets you create your own custom converters when you need behavior that isn’t covered by the built-in converters. See Converter Scripts for more information.

​
Converter Groups

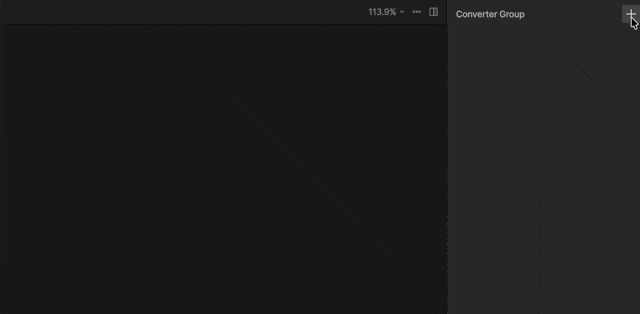

Build and converter group Converter groups let you chain multiple converters together, where the output of one becomes the input of the next.
1

Create a Converter Group

In the Assets panel, click the + button and select Converter > Group.
2

Add a Converter to Your Group

With the group selected, add the + button in the right sidebar and select an existing or new converter.
When binding a value, your converter group can now be used just like an individual converter.

​
How execution works

Converters run from top to bottom:
  • The first converter receives the original input
  • Each converter passes its result to the next
  • The final output is the result of the last converter

​
Reordering converters

Drag a converter up or down to change when it runs. Earlier converters affect all converters that follow.
