Text

DEPRECATION NOTICE: This entire page documents the legacy Text manipulation system. For new projects: Use Data Binding instead. For existing projects: Plan to migrate from direct text run manipulation to Data Binding as soon as possible.

For more information on designing and animating Text, please refer to the editor’s text section:

[Information on designing and animating Text]

Please ensure you’re on the correct runtime version with support for Rive Text; see Feature Support.

Read/Update Text Runs at Runtime

⚠️ LEGACY CONTENT WARNING: The following sections document the deprecated Text manipulation system. This content is provided for legacy support only. New implementations should use Data Binding.

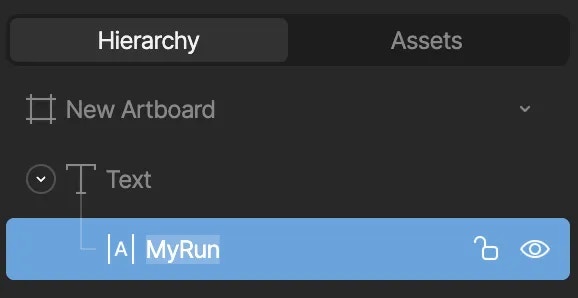

If you intend to update a text run at runtime it’s important to manually enter a unique name for the run in the editor:

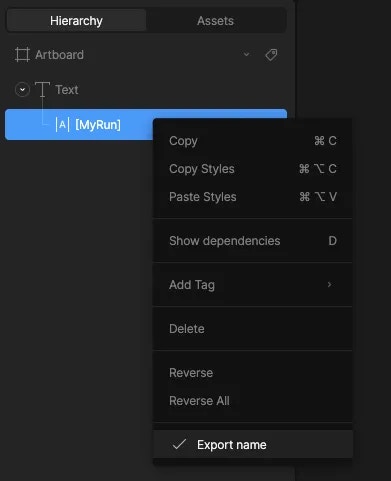

And then export the name: right-click and select Export name

You can identify an exported component if it’s surrounded by square brackets. This makes it possible for the run to be “discoverable” at runtime by its name. For more information, see Exporting for Runtime.

If the name is not set manually in the editor the name will not be part of the exported .riv (to reduce file size).

Text runs can also be updated on components at runtime, see Read/Update Nested Text Runs at Runtime below.

Examples

Updating Text at Runtime - Localization example

High-level API usage

Reading TextTo read a given text run text value at any given time, reference the .getTextRunValue() API on the Rive instance:

public getTextRunValue(textRunName: string): string | undefined

Supply the text run name, and you’ll have the Rive text run value returned, or undefined if the text run could not be queried.Setting TextTo set a given text run value at any given time, reference the .setTextRunValue() API on the Rive instance:

public setTextRunValue(textRunName: string, textRunValue: string): void

Supply the text run name and a second parameter, textValue, with a String value that you want to set the new text value for if the text run can be successfully queried on the active artboard.

Example Usage

import {Rive} from '@rive-app/canvas'

const r = new Rive({
src: "my-rive-file.riv"
artboard: "my-artboard-name",
autoplay: true,
stateMachines: "State Machine 1",
onLoad: () => {
    console.log("My design-time text is, ", r.getTextRunValue("MyRun"));
    r.setTextRunValue("MyRun", "New text value");
},
})

Low-level API usage

Get a reference to the Rive Artboard, find a text run by a given name, and get/update the text value property.

import RiveCanvas from '@rive-app/canvas-advanced';


const bytes = await (
await fetch(new Request('./my-rive-file.riv'))
).arrayBuffer();
const myRiveFile = await rive.load(new Uint8Array(bytes));

const artboard = myRiveFile.defaultArtboard();
const textRun = artboard.textRun("MyRun"); // Query by the text run name
console.log(`My design-time text is ${textRun.text}`);
textRun.text = "Hello JS Runtime!";

...

Examples

Updating Text at Runtime - Localization example

Reading Text

To read a given text run text value at any given time, reference the .getTextRunValue() API on the rive instance returned from useRive:

public getTextRunValue(textRunName: string): string | undefined

Supply the text run name, and you’ll have the Rive text run value returned, or undefined if the text run could not be queried.

Setting Text

To set a given text run value at any given time, reference the .setTextRunValue() API on the rive instance returned from useRive:

public setTextRunValue(textRunName: string, textRunValue: string): void

Supply the text run name and a second parameter, textValue, with a String value that you want to set the new text value for if the text run can be successfully queried on the active artboard.

Example Usage

import { useRive } from '@rive-app/canvas';

const MyTextComponent = () => {
const {rive, RiveComponent} = useRive({
    src: "my-rive-file.riv",
    artboard: "New Artboard",
    stateMachines: "State Machine 1",
    autoplay: true,
});

// Cannot query for the text run immediately, you have to wait until `rive`
// has value and has instantiated before querying or setting text run values
useEffect(() => {
    if (rive) {
    console.log("Rive text was initially: ", rive.getTextRunValue("MyRun"));
    rive.setTextRunValue("MyRun", "New Text!!");
    console.log("Rive text is now: ", rive.getTextRunValue("MyRun"));
    }
}, [rive]);

return (
    <RiveComponent />
);
};

Setting Text via Rive Ref

To set a given text run value at any given time, reference the .setTextRunValue() API on the Rive ref:

setTextRunValue: (textRunName: string, value: string) => void;

Supply the text run name and a second parameter, textValue, with a String value that you want to set the new text value for.

Example Usage

export default function DynamicText() {
const riveRef = useRef<RiveRef>(null);

const handleInputChange = (e: string) => {
    // Set the TextRun value of the 'name' TextRun
    // The name must exist else an error will be thrown
    riveRef.current?.setTextRunValue('name', e);
};

return (
    <SafeAreaView style={styles.safeAreaViewContainer}>
    <ScrollView>
        <Rive
        ref={riveRef}
        resourceName="hello_world_text"
        stateMachineName="State Machine 1"
        />
        <TextInput
        onChangeText={handleInputChange}
        defaultValue="world"
        />
    </ScrollView>
    </SafeAreaView>
);
}

Get/set the text run value on an Artboard instance.

We recommend using Data Binding instead to update text at runtime.

Get/Set Text Run Value

final controller = RiveWidgetController(riveFile);
final artboard = controller.artboard;

// Get a text run value
artboard.getText(value)
// Optional path parameter to get a text run value at a component instance level
artboard.getText(value, path: path)

// Set a text run value
artboard.setText(value)
// Optional path parameter to set a text run value at a component instance level
artboard.setText(value, path: path)

Reading Text

To read a given text run text value at any given time, reference the .getTextRunValue() API on the RiveViewModel:

open func getTextRunValue(_ textRunName: String) -> String?

Supply the text run name and you’ll have the Rive text run value returned, or nil if the text run could not be queried.

Setting Text

To set a given text run value at any given time, reference the .setTextRunValue() API on the RiveViewModel:

open func setTextRunValue(_ textRunName: String, textValue: String) throws

Supply the text run name and a second parameter, textValue, with a String value that you want to set the new text value for.

If the supplied textRunName Rive text run cannot be queried on the active artboard, Rive will throw a RiveError.textValueRunError that you may need to catch and handle gracefully in your application.

Example Usage

@State private var userInput: String = ""
@State private var rvm = RiveViewModel(fileName: "my-rive-file")

var body: some View {
    VStack(spacing: 20) {
        Text("Enter text:")
            .font(.headline)
        TextField("Enter text...", text: $userInput)
            .textFieldStyle(RoundedBorderTextFieldStyle())
            .padding()
            .onChange(of: userInput, perform: { newValue in
                if (!newValue.isEmpty) {
                    try! rvm.setTextRunValue("MyTextRunName", textValue: userInput)
                }
            })
        rvm.view()
    }
}

Reading Text via RiveAnimationView

To read a given text run text value at any given time, reference the .getTextRunValue() API on the RiveAnimationView:

fun getTextRunValue(textRunName: String): String? = try

Supply the text run name and you’ll have the Rive text run value returned, or null if the text run could not be queried.

Setting Text via RiveAnimationView

To set a given text run value at any given time, reference the .setTextRunValue() API on the RiveAnimationView:

fun setTextRunValue(textRunName: String, textValue: String)

Supply the text run name and a second parameter, textValue, with a String value that you want to set the new text value for.

If the supplied textRunName Rive text run cannot be queried on the active artboard, Rive will throw a RiveException that you may need to catch and handle gracefully in your application.

Reference to Rive TextRun

You can also choose to query the active Artboard for the Rive text run reference and get/set a text property manually.

private val textRun by lazy(LazyThreadSafetyMode.NONE) {
    yourRiveAnimationView.artboardRenderer?.activeArtboard?.textRun("name")
}

Example Usage

import android.os.Bundle
import android.text.Editable
import android.text.TextWatcher
import android.util.Log
import android.widget.EditText
import androidx.appcompat.app.AppCompatActivity
import app.rive.runtime.kotlin.RiveAnimationView

class DynamicTextActivity : AppCompatActivity(), TextWatcher {
    private val animationView by lazy(LazyThreadSafetyMode.NONE) {
        findViewById<RiveAnimationView>(R.id.dynamic_text)
    }

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.dynamic_text)
        val editText = findViewById<EditText>(R.id.text_run_value)
        editText.addTextChangedListener(this)
    }

    override fun beforeTextChanged(s: CharSequence?, start: Int, count: Int, after: Int) {
        // get the current value of the reference
        animationView.getTextRunValue("name")
    }

    override fun onTextChanged(s: CharSequence?, start: Int, before: Int, count: Int) {
        // update the reference
        animationView.setTextRunValue("name", s.toString())
    }
}

Read/Update Nested Text Runs at Runtime

⚠️ DEPRECATED FEATURE: Nested Text Runs are part of the legacy Text manipulation system. Use Data Binding instead for controlling component text properties at runtime.

It’s possible to set nested text runs at runtime—text that is not on the main artboard but on a Component. To set a nested text run, you’ll need to take note of the path where the input exists at an artboard level. For example, to get/set the text run named button_text on the Button artboard, you need to provide the correct path.

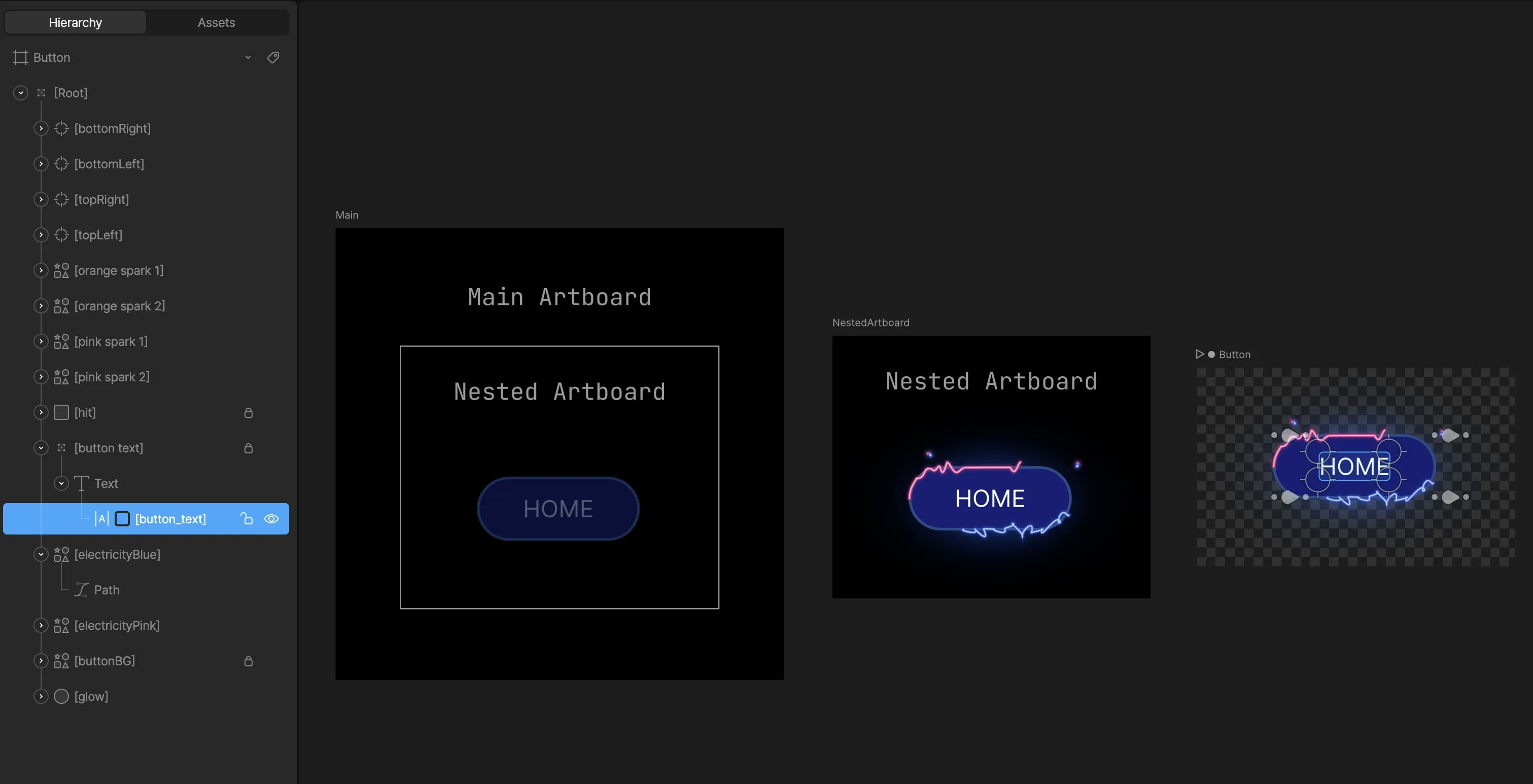

Setting Nested Text Runs The artboard names here are:

Main -> NestedArtboard -> Button

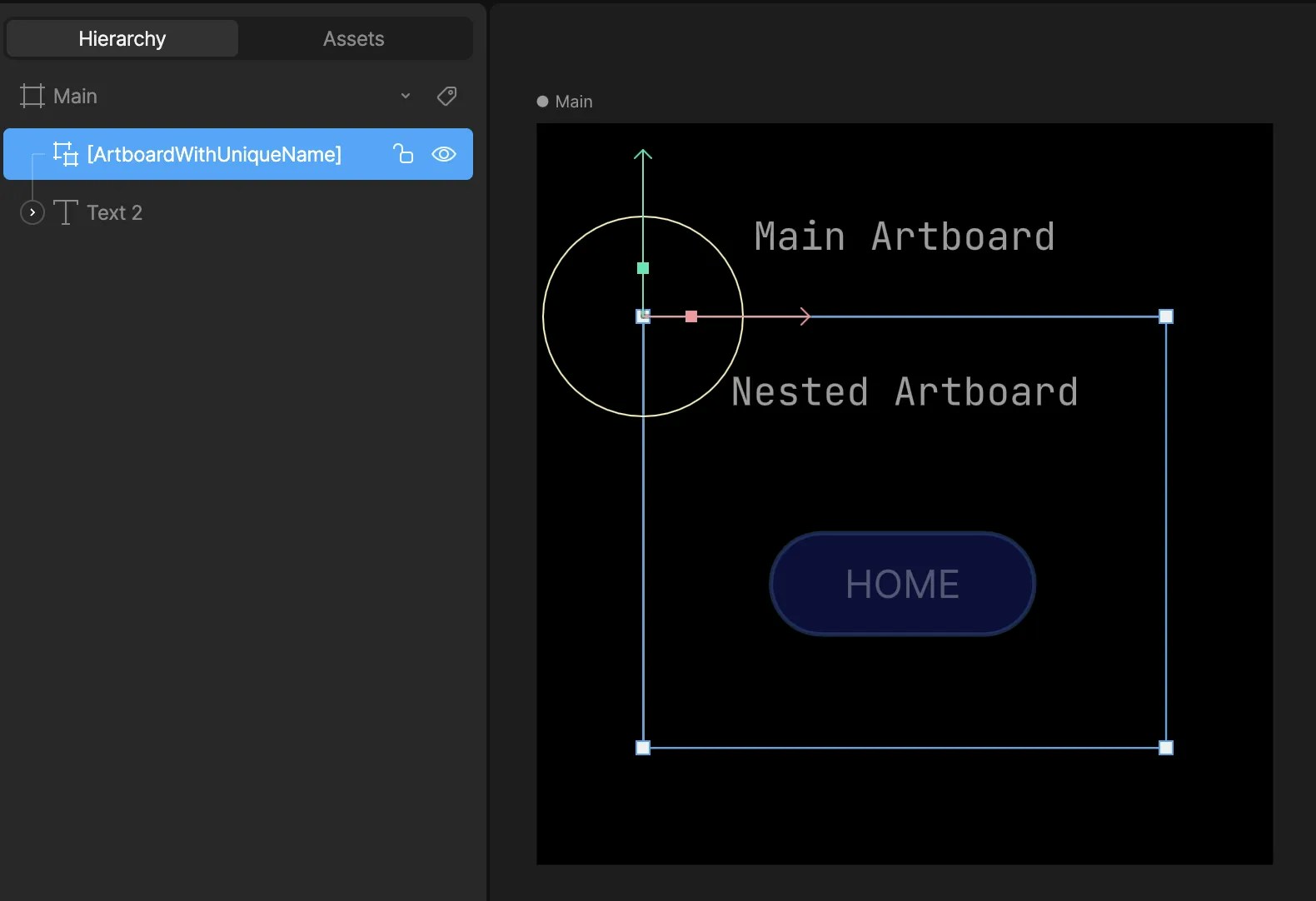

However, the path is determined based on the names set in the hierarchy:

ArtboardWithUniqueName -> ButtonWithUniqueName

The path is then: ArtboardWithUniqueName/ButtonWithUniqueName

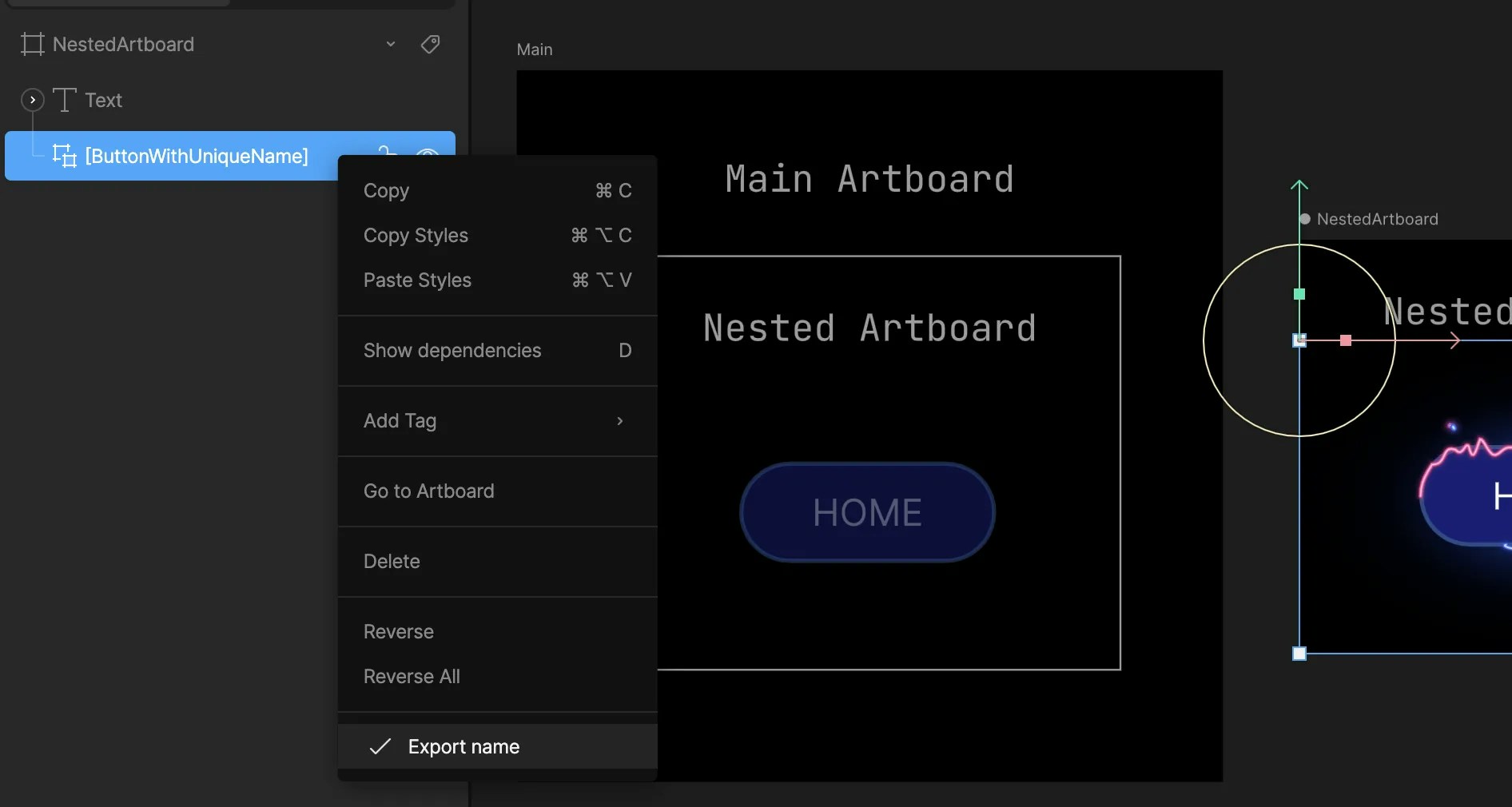

Be sure to mark the components and text runs as exported.

Export component name

Do not use ”/” in the name for your components, as that will break the search functionality at runtime.

Examples

Updating Nested Text at Runtime - Localization example

High-level API usage

Reading TextTo read a given text run text value at a specific path, reference the .getTextRunValueAtPath() API on the Rive instance:

public getTextRunValueAtPath(textRunName: string, path: string): string | undefined

Supply the text run name and the path where it is located, and you’ll have the Rive text run value returned, or undefined if the text run could not be queried.Setting TextTo set a given text run value at a specific path, reference the .setTextRunValueAtPath() API on the Rive instance:

public setTextRunValueAtPath(textRunName: string, textRunValue: string, path: string): void

Supply the textRunName, the new textValue, and the path where the run is located at a component instance level.

Example Usage

import {Rive} from '@rive-app/canvas'

const r = new Rive({
src: "my-rive-file.riv"
artboard: "my-artboard-name",
autoplay: true,
stateMachines: "State Machine 1",
onLoad: () => {
    console.log("My design-time text is, ", r.getTextRunValueAtPath("MyRun", "path/to/run"));
    r.setTextRunValueAtPath("MyRun", "New text value", "path/to/run");
},
})

Examples

Updating Nested Text at Runtime - Localization example

Reading Text

To read a given text run text value at a specific path, reference the .getTextRunValueAtPath() API on the rive instance returned from useRive:

public getTextRunValueAtPath(textRunName: string, path: string): string | undefined

Supply the text run name and the path, and you’ll have the Rive text run value returned, or undefined if the text run could not be queried.

Setting Text

To set a given text run value at a specific path, reference the .setTextRunValueAtPath() API on the rive instance returned from useRive:

public setTextRunValueAtPath(textRunName: string, textRunValue: string, path: string): void

Supply the textRunName, the new textRunValue , and the component path where it is located.

Example Usage

import { useRive } from '@rive-app/canvas';

const MyTextComponent = () => {
const {rive, RiveComponent} = useRive({
    src: "my-rive-file.riv",
    artboard: "New Artboard",
    stateMachines: "State Machine 1",
    autoplay: true,
});

// Cannot query for the text run immediately, you have to wait until `rive`
// has value and has instantiated before querying or setting text run values
useEffect(() => {
    if (rive) {
    console.log("Rive text was initially: ", rive.getTextRunValueAtPath("MyRun", "path/to/run"));
    rive.setTextRunValueAtPath("MyRun", "New Text!!", "path/to/run");
    console.log("Rive text is now: ", rive.getTextRunValue("MyRun, "path/to/run");
    }
}, [rive]);

return (
    <RiveComponent />
);
};

Get/set a nested text run value on an Artboard instance.

We recommend using Data Binding instead to update text at runtime.

Get/Set Text Run Value

final controller = RiveWidgetController(riveFile);
final artboard = controller.artboard;

//Use the path parameter to get a text run value at a component instance level
artboard.getText(value, path: path)

// Use the path parameter to set a text run value at a component instance level
artboard.setText(value, path: path)

Reading Text

Similar to reading text from a text run within a parent artboard, you can set the value of a text run within a component instance using the following API:

open func getTextRunValue(_ textRunName: String, path: String) -> String?

Setting Text

Additionally, similar to setting text within a parent artboard, you can read the value of a text run within a component instance using the following API:

open func setTextRunValue(_ textRunName: String, textValue: String, path: String) throws

Example:

@State private var userInput: String = ""
@State private var rvm = RiveViewModel(fileName: "my-rive-file")

var body: some View {
    VStack(spacing: 20) {
        Text("Enter text:")
            .font(.headline)
        TextField("Enter text...", text: $userInput)
            .textFieldStyle(RoundedBorderTextFieldStyle())
            .padding()
            .onChange(of: userInput, perform: { newValue in
                if (!newValue.isEmpty) {
                    try! rvm.setTextRunValue("MyTextRunName", textValue: userInput, path: "Artboard/NestedArtboard")
                }
            })
        rvm.view()
    }
}

Reading Text via RiveAnimationView

To read a given text run text value at any given time, reference the .getTextRunValue() API on the RiveAnimationView:

fun getTextRunValue(textRunName: String, path: String): String? = try

Supply the text run name and the path to where it exists and you’ll have the Rive text run value returned, or null if the text run could not be queried.

Setting Text via RiveAnimationView

To set a given text run value at any given time, reference the .setTextRunValue() API on the RiveAnimationView:

fun setTextRunValue(textRunName: String, textValue: String, path: String)

Supply the text run name, a second parameter, textValue, with a String value that you want to set the new text value for, and the path value to where the text run exists at an artboard level.If the supplied textRunName Rive text run cannot be queried on the active artboard, Rive will throw a RiveException that you may need to catch and handle gracefully in your application.

Reference to Rive TextRun

You can also choose to query the active Artboard for the Rive text run reference and get/set a text property manually.

private val textRun by lazy(LazyThreadSafetyMode.NONE) {
    yourRiveAnimationView.artboardRenderer?.activeArtboard?.textRun("name", "path/to/artboard")
}

To set the button_text text run value on the nested button artboard, the code snippet would look like this for the example above:

m_file = Rive.File.Load(asset);
m_artboard = m_file.Artboard(0);

// Set a nested text run value
m_artboard.SetTextRunValueAtPath("button_text", "ArtboardWithUniqueName/ButtonWithUniqueName", "Click Me!");

// Get a nested text run value
string buttonText = m_artboard.GetTextRunValueAtPath("button_text", "ArtboardWithUniqueName/ButtonWithUniqueName");

API Methods:

void SetTextRunValueAtPath(string runName, string path, string value)
string GetTextRunValueAtPath(string runName, string path)

These methods allow you to interact with nested text runs by specifying the run name and the path within the artboard hierarchy. With this approach, you can access deeper nested text runs by continuing to construct the path, for example: "Artboard-Nested-Level1/Arboard-Nested-Level2/Artboard-Nested-Level3", and so on.

Semantics for Accessibility

We recommend using Data Binding instead as you’ll be able to do a two way text binding.

As Rive Text does not make use of the underlying platform text APIs, additional steps need to be taken to ensure it can be read by screen readers. The following code snippets provide guidance on how to add semantic labels to your Rive animations. Please see the respective platform/SDKs developer documentation for additional information regarding accessibility concerns.

Flutter
Web (JS)

See Flutter’s documentation on Accessibility for more information. In this example you’ll use the Semantics widget to provide a label that reflects the current value of the Rive Text component.

...

final controller = RiveWidgetController(riveFile);
final textValue = controller.artboard.getText('some_text_run_name').value;
String semanticLabel = textValue;

...

Semantics(
    label: semanticLabel,
    child: RiveWidget(controller: controller);
),

Adding ARIA LabelAt a minimum - if it is important to convey the text value displayed in the Rive animation to all users, add an aria-label to the <canvas> element with the text value from the animation. Screen readers may read this label out immediately as it parses out the DOM contents. You’ll also want to add role="img" to the <canvas> element as well.

<canvas
    id="rive-canvas"
    width={500}
    height={500}
    role="img"
    aria-label="Hello friend, welcome to my page"
></canvas>

Adding ARIA Live Region

While ARIA labels are a direct method to manage a textual label for screen readers to read out as it parses web content, using an ARIA live region allows you a way to control when screen readers read out dynamic text content.Live regions are useful in cases where the text content in your Rive graphic becomes visible or changes on a particular state in a state machine, and you want screen readers to pick up on text changes. Another use case is when you only want screen readers to read your Rive text content when the <canvas> is scrolled into view.Read more on ARIA live regions here.

Example: Rating Graphic

To try this example out, visit this CodeSandbox link

Imagine you’re displaying an interactive Rive graphic that allows users to choose a rating from 1-5 stars. Users clicking on the different stars can visually see the state machine in action with animations to see what star they click, but screen readers may need a way to announce what selection was chosen as other users navigate the canvas with keyboard controls, for example.The HTML for this might look like the following:

<canvas
role="img"
tabindex="0"
aria-describedby="rating-animation-live"
id="canvas"
></canvas>
<p id="rating-animation-live" class="sr-only" aria-live="assertive">
An interactive rating simulation. Use the left and right arrow keys to
select a rating
</p>

Note that the <canvas> element has an aria-describedby attribute whose value matches the id of the <p> below it, #rating-animation-live. This allows the <p> block content to describe the <canvas> element. And similar to using aria-label, we have to add the role="img" attribute to the canvas as well. The aria-live="assertive" attribute describes how to interrupt the screen reader’s flow of reading content based on when the content within this <p> changes.Let’s take a look at what the JS might look like using the Rive Web (JS) runtime:

const rive = require("@rive-app/canvas");
const dynamicTextEl = document.getElementById("rating-animation-live");

const r = new rive.Rive({
src: "rating.riv",
canvas: document.getElementById("canvas"),
stateMachines: "State Machine 1",
autoplay: true,
onLoad: () => {
    r.setTextRunValue("RatingRun", "0");
    r.resizeDrawingSurfaceToCanvas();
    // See CodeSandbox link above for further functionality
},
onStateChange: (e) => {
    const name = e.data[0];
    const ratingStr = name.charAt(0);
    const ratingNum = parseInt(ratingStr);
    if (!isNaN(ratingNum)) {
    const ratingString = name
        .split("_")
        .reduce((acc, temp) => {
        return (acc += ` ${temp}`);
        }, "")
        .trim();
    r.setTextRunValue("RatingRun", ratingStr);

    dynamicTextEl.innerHTML = `Rating: ${ratingString}`;
    }
}
});

In the above snippet, we’ve created an instance of Rive, and as the state changes in the state machine, we’re dynamically updating the contents of the live region (represented by dynamicTextEl) with the string rating. Due to the live region having the property of aria-live="assertive", screen readers should read off the new dynamic text content.

Additional Resources:

Accesible web animations: ARIA live regions

Runtime Fundamentals

App Runtimes

Text

Text

Read/Update Text Runs at Runtime

Examples

High-level API usage

Example Usage

Low-level API usage

Examples

Reading Text

Setting Text

Example Usage

Setting Text via Rive Ref

Example Usage

Reading Text

Setting Text

Example Usage

Reading Text via RiveAnimationView

Setting Text via RiveAnimationView

Reference to Rive TextRun

Read/Update Nested Text Runs at Runtime

Examples

High-level API usage

Example Usage

Examples

Reading Text

Setting Text

Example Usage

Reading Text

Setting Text

Example:

Reading Text via RiveAnimationView

Setting Text via RiveAnimationView

Reference to Rive TextRun

API Methods:

Semantics for Accessibility

Adding ARIA Live Region

Example: Rating Graphic

Additional Resources:

Runtime Fundamentals

App Runtimes

Text

​Read/Update Text Runs at Runtime

​Examples

​High-level API usage

​Example Usage

​Low-level API usage

​Examples

​Reading Text

​Setting Text

​Example Usage

​Setting Text via Rive Ref

​Example Usage

​Reading Text

​Setting Text

​Example Usage

​Reading Text via RiveAnimationView

​Setting Text via RiveAnimationView

​Reference to Rive TextRun

​Read/Update Nested Text Runs at Runtime

​Examples

​High-level API usage

​Example Usage

​Examples

​Reading Text

​Setting Text

​Example Usage

​Reading Text

​Setting Text

​Example:

​Reading Text via RiveAnimationView

​Setting Text via RiveAnimationView

​Reference to Rive TextRun

​API Methods:

​Semantics for Accessibility

​Adding ARIA Live Region

​Example: Rating Graphic

​Additional Resources:

Read/Update Text Runs at Runtime

Examples

High-level API usage

Example Usage

Low-level API usage

Examples

Reading Text

Setting Text

Example Usage

Setting Text via Rive Ref

Example Usage

Reading Text

Setting Text

Example Usage

Reading Text via RiveAnimationView

Setting Text via RiveAnimationView

Reference to Rive TextRun

Read/Update Nested Text Runs at Runtime

Examples

High-level API usage

Example Usage

Examples

Reading Text

Setting Text

Example Usage

Reading Text

Setting Text

Example:

Reading Text via RiveAnimationView

Setting Text via RiveAnimationView

Reference to Rive TextRun

API Methods:

Semantics for Accessibility

Adding ARIA Live Region

Example: Rating Graphic

Additional Resources:
