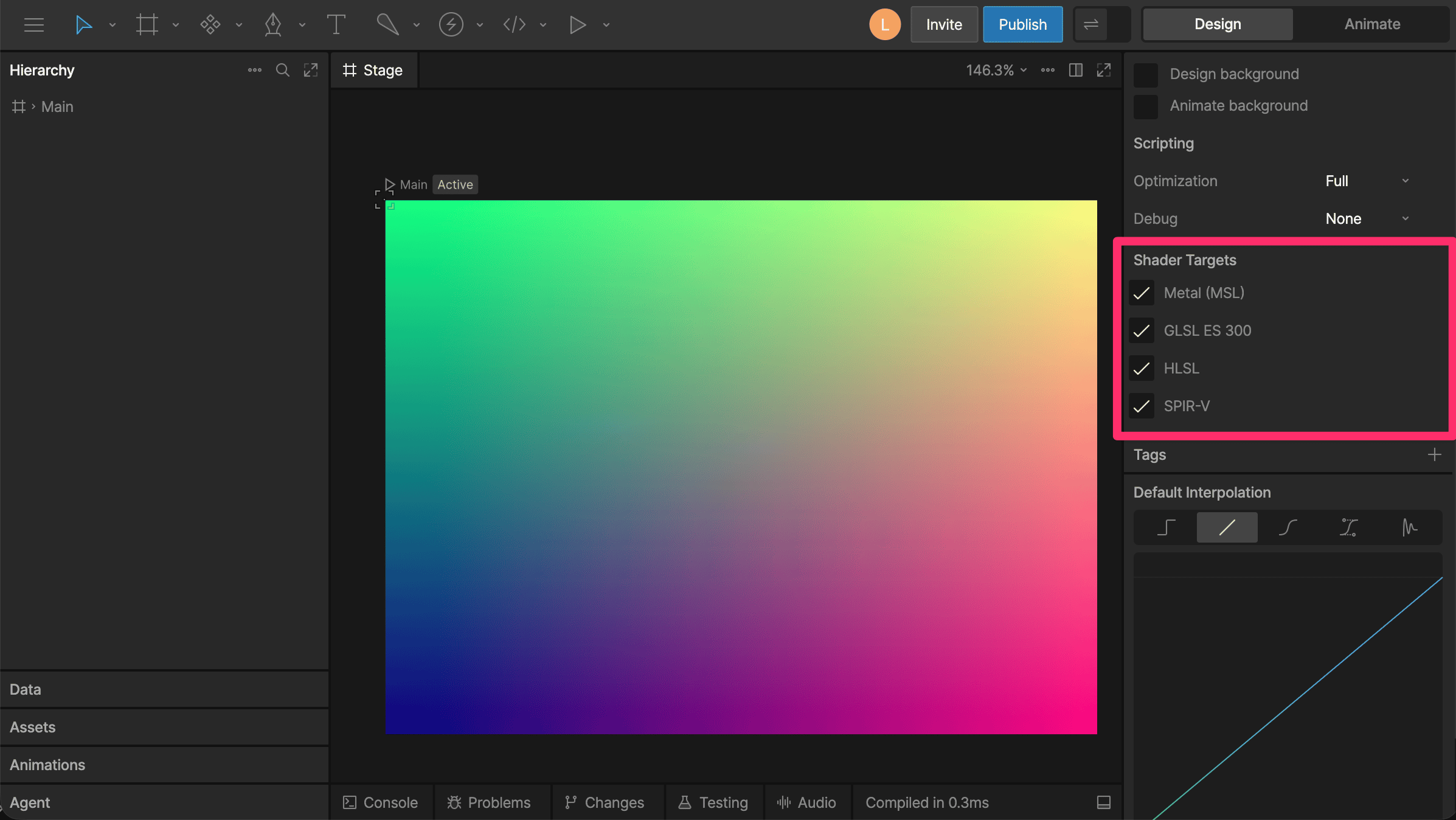

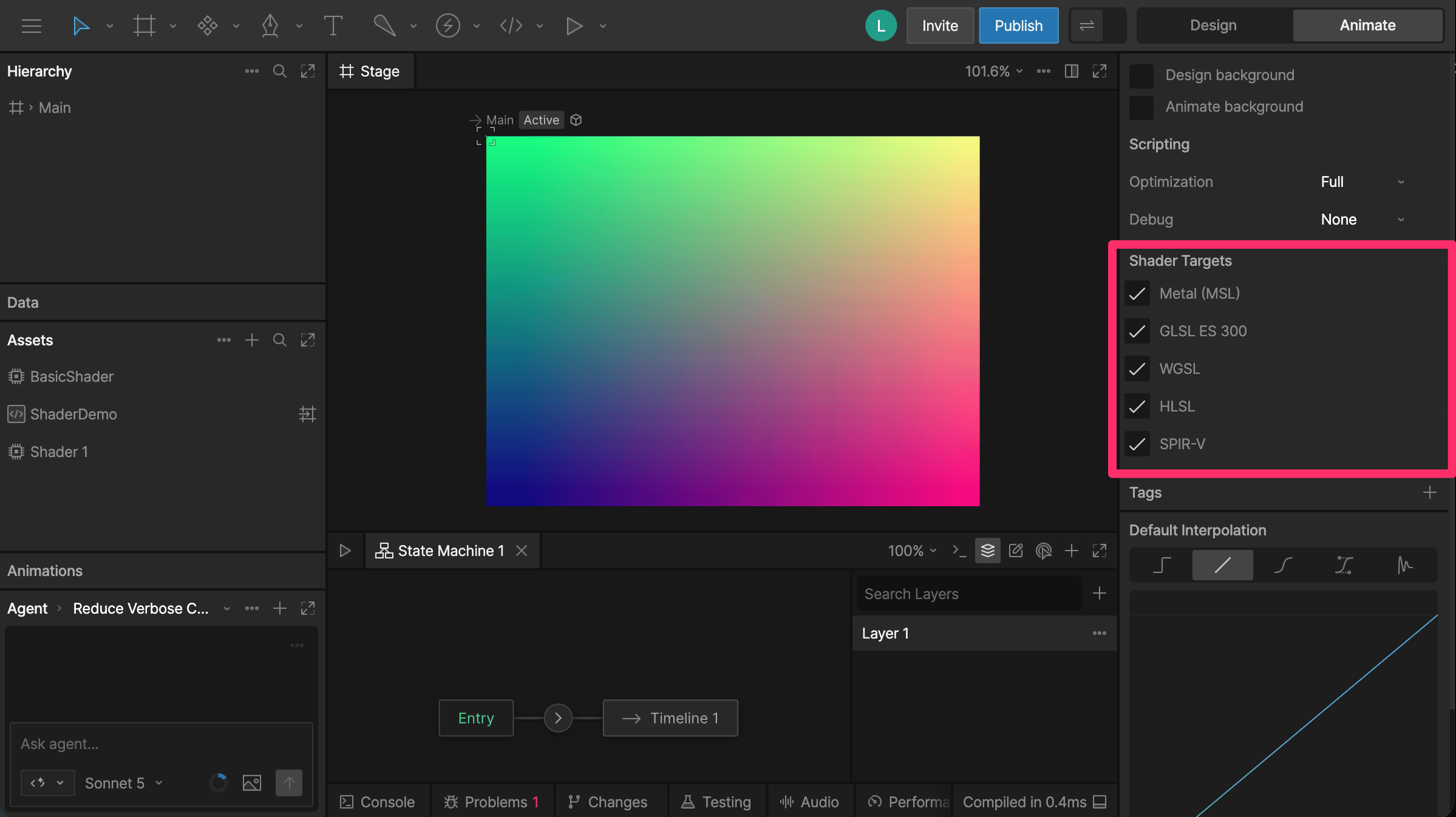

WGSL Shaders

// ----------------------------------------------------------------------------
// VertexOutput describes the data that flows OUT of the vertex shader and
// INTO the fragment shader. Think of it as a small "package" of values that
// gets automatically interpolated (smoothly blended) across each pixel of
// the triangle before the fragment shader receives it.
// ----------------------------------------------------------------------------
struct VertexOutput {
    // @builtin(position) is REQUIRED — it tells the GPU where this vertex
    // sits on screen, in "clip space" (x and y roughly range from -1 to 1).
    @builtin(position) position: vec4<f32>,

    // @location(0) is a CUSTOM output we're choosing to pass along — in this
    // case, UV coordinates (a 2D position ranging from 0 to 1) that we will
    // use in the fragment shader to build our gradient.
    @location(0) uv: vec2<f32>,
}

// ----------------------------------------------------------------------------
// The VERTEX shader.
// @vertex marks this function as the entry point that runs once per vertex.
// The GPU calls this function 3 times (once per corner of our triangle),
// automatically passing in vertexIndex = 0, 1, then 2.
// ----------------------------------------------------------------------------
@vertex
fn vs_main(@builtin(vertex_index) vertexIndex: u32) -> VertexOutput {
    // Here we define 3 fixed 2D points that make up one giant triangle.
    // It's intentionally bigger than the screen (-1..3 instead of -1..1) so
    // that after clipping, it ends up covering the ENTIRE visible area with
    // just a single triangle — a cheap way to draw a fullscreen effect.
    var pos = array<vec2<f32>, 3>(
        vec2<f32>(-1.0, -1.0),
        vec2<f32>(3.0, -1.0),
        vec2<f32>(-1.0, 3.0),
    );

    // Look up which of the 3 points we're currently processing.
    let p = pos[vertexIndex];

    // Create the output package described by VertexOutput above.
    var out: VertexOutput;

    // Clip space positions need to be a vec4 (x, y, z, w). We use z = 0.0
    // (no depth) and w = 1.0 (no perspective division needed for 2D).
    out.position = vec4<f32>(p, 0.0, 1.0);

    // Convert our clip-space point (range -1..1) into UV space (range 0..1),
    // which is a more convenient range for coloring/texturing later on.
    // Formula: uv = position * 0.5 + 0.5
    out.uv = p * 0.5 + vec2<f32>(0.5, 0.5);

    return out;
}

// ----------------------------------------------------------------------------
// The FRAGMENT shader.
// @fragment marks this function as the entry point that runs once per pixel
// covered by the triangle. It receives the interpolated VertexOutput values
// (the "in" parameter) and must return a final color for that pixel.
// ----------------------------------------------------------------------------
@fragment
fn fs_main(in: VertexOutput) -> @location(0) vec4<f32> {
    // The returned color is a vec4: (red, green, blue, alpha), with each
    // channel ranging from 0.0 (none) to 1.0 (full intensity).
    //

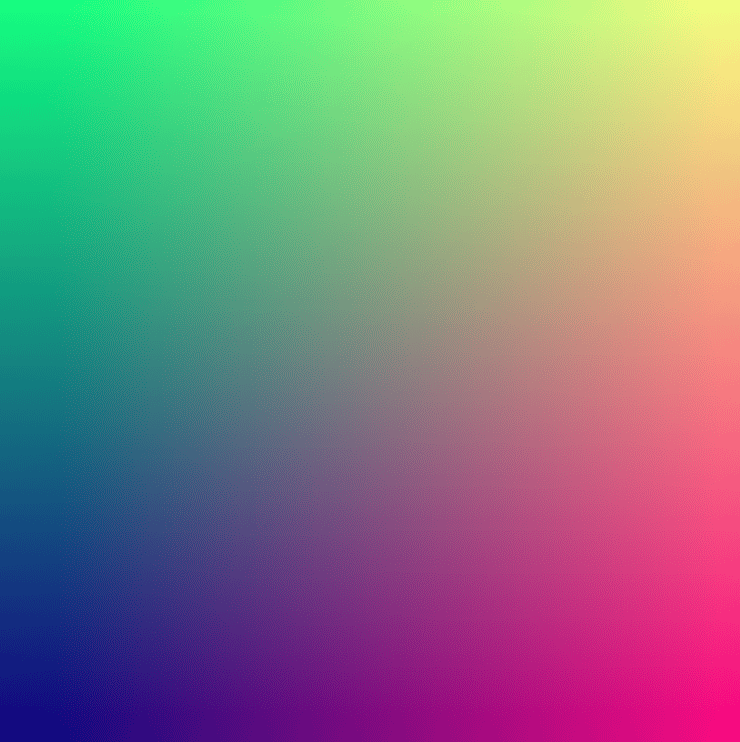

    // Here we build a simple gradient:
    //   - red   grows from left (0.0) to right (1.0) following UV.x
    //   - green grows from top/bottom (0.0) to (1.0) following UV.y
    //   - blue  stays fixed at 0.5 (a constant medium blue tint)
    //   - alpha is 1.0, meaning fully opaque (not transparent)
    return vec4<f32>(in.uv.x, in.uv.y, 0.5, 1.0);
}

type ShaderDemo = {
  -- The GPUCanvas is an offscreen render target we draw our shader into.
  -- It behaves like a small texture we fully control with the GPU.
  canvas: GPUCanvas?,
  -- The GPUPipeline bundles our compiled shader together with the
  -- fixed-function GPU settings (what format to draw into, how vertices
  -- are laid out, etc). It's built once and reused every frame.
  pipeline: GPUPipeline?,
}

function init(self: ShaderDemo, context: Context): boolean
  -- Create a 200x200 GPU canvas to render our shader's output into.
  self.canvas = context:gpuCanvas({ width = 200, height = 200 })

  -- Fetch the compiled shader asset named "BasicShader"
  local shader = context:shader("BasicShader")
  if shader and self.canvas then
    -- Build the pipeline: the same shader module provides both the
    -- @vertex (vs_main) and @fragment (fs_main) entry points.
    self.pipeline = GPUPipeline.new({
      vertex = shader,
      fragment = shader,
      -- No vertex buffers needed — BasicShader generates its fullscreen
      -- triangle's positions directly from the vertex index.
      vertexLayout = {},
      -- The pipeline's output color format must match the canvas format
      -- it will be rendering into.
      colorTargets = { { format = self.canvas.format } },
    })
  end

  return true
end

function drawCanvas(self: ShaderDemo)
  if self.canvas and self.pipeline then
    -- Start a GPU render pass targeting our canvas. "clear" wipes it to
    -- clearColor (opaque black here) before drawing anything new.
    local pass = self.canvas:beginRenderPass({
      color = { { loadOp = "clear", storeOp = "store", clearColor = { 0, 0, 0, 1 } } },
    })
    -- Tell the GPU which pipeline (shader + settings) to use for the
    -- draw call below.
    pass:setPipeline(self.pipeline)
    -- Draw 3 vertices with no vertex/index buffers — this runs vs_main
    -- three times (vertexIndex 0, 1, 2), producing our fullscreen triangle,
    -- then runs fs_main once per covered pixel to shade it.
    pass:draw(3)
    -- Submit the pass; the canvas now holds the shader's rendered image.
    pass:finish()
  end
end

function draw(self: ShaderDemo, renderer: Renderer)
  if self.canvas then
    -- The GPU canvas exposes its rendered result as a normal Image, so we
    -- can composite it into the rest of the Rive scene like any other
    -- image — no special shader knowledge needed here.
    local sampler = ImageSampler("clamp", "clamp", "bilinear")
    renderer:drawImage(self.canvas.image, sampler, "srcOver", 1)
  end
end

return function(): Node<ShaderDemo>
  return {
    canvas = nil,
    pipeline = nil,
    init = init,
    drawCanvas = drawCanvas,
    draw = draw,
  }
end
