Path Effects are Rive scripts that modify and transform path geometry in real-time. They give you programmatic control over the shape and structure of paths in your animations, enabling effects like warping, distortion, animation, and procedural modifications.

​
Creating a Path Effect

Create a new script and select Path Effect as the type.

​
Examples

​
Anatomy of a Path Effect Script

​
Methods

  • init (optional) Called once when the path effect is created. Use this to set up initial state. Returns true if initialization succeeds.
  • update (required) The core method where path transformation happens. Receives the original PathData and returns a modified version. This is where you manipulate the path’s geometry.
  • advance (optional) Called every frame with elapsed time in seconds. Returns true to continue receiving advance calls. Useful for animated effects that change over time.

​
Working with PathData

PathData provides access to a path’s drawing commands (moveTo, lineTo, cubicTo, quadTo, close). You can:
  • Read existing commands using indexing
  • Get the command count with #pathData
  • Create new paths and add commands
  • Use measurement tools like contours() and measure() for advanced operations
type MyPathEffect = {
  context: Context,
}

function init(self: MyPathEffect, context: Context): boolean
  self.context = context
  return true
end

function update(self: MyPathEffect, inPath: PathData): PathData
  local path = Path.new()
  return path
end

function advance(self: MyPathEffect, seconds: number): boolean
  return true
end

-- Return a factory function that Rive uses to build the Path Effect instance.
return function(): PathEffect<MyPathEffect>
  return {
    init = init,
    update = update,
    advance = advance,
    context = late(),
  }
end
If a Path Effect script changes over time, call markNeedsUpdate() on the effect context from advance(). This tells Rive to recalculate the effect on the next frame, even when the source path itself has not changed.Without this, the effect may appear to freeze because Rive has no signal that the path output is changing. This is especially important for animated path effects inside nested components, where the source path may remain static while the script continues updating its own internal values.
local function init(self: WaveyEffect, context: Context): boolean
  self.context = context
  self.time = 0.0
  return true
end

local function advance(self: WaveyEffect, seconds: number): boolean
  self.time += seconds * math. clamp(self. speed, 0.0, 20.0)

  if self. context then
    self.context: markNeedsUpdate()
  end

  return true
end

​

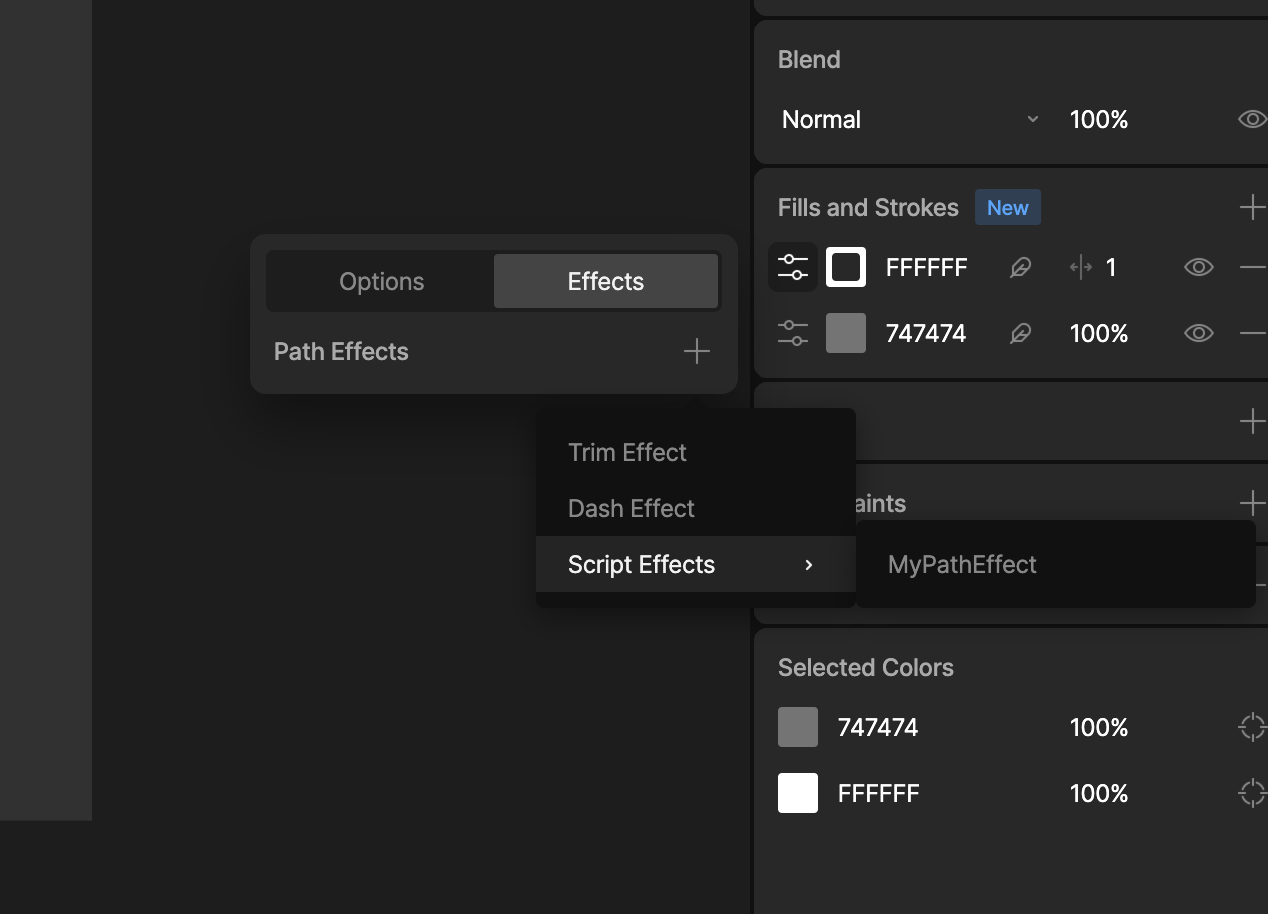

Add the Scripted Path Effect to a Stroke

Select or add a stroke to a shape:
  1. Open the Options menu.
  2. Select the Effects Tab and click the ’+’ to add an effect.
  3. Find your effects under the Script Effects menu option.
  4. Any inputs you have defined will apepar and can be edited here.
Add Path Effect to a Stroke

​
Adding Inputs

See Script Inputs.
