Text Modifiers
Modifiers provide powerful ways to manipulate and animate the glyphs that make up text. Currently, the available Text Modifier properties include:
Position
Rotation
Scale
Origin
Opacity
Variables (requires variable supported font)
Modifier Group
A Text Modifier group contains at least one range and up to one of each modifier property. Each Text object can have multiple modifier groups.
Use the + action alongside the modifier group name to enable a chosen property.
Each modifier group may only add one of each property type.

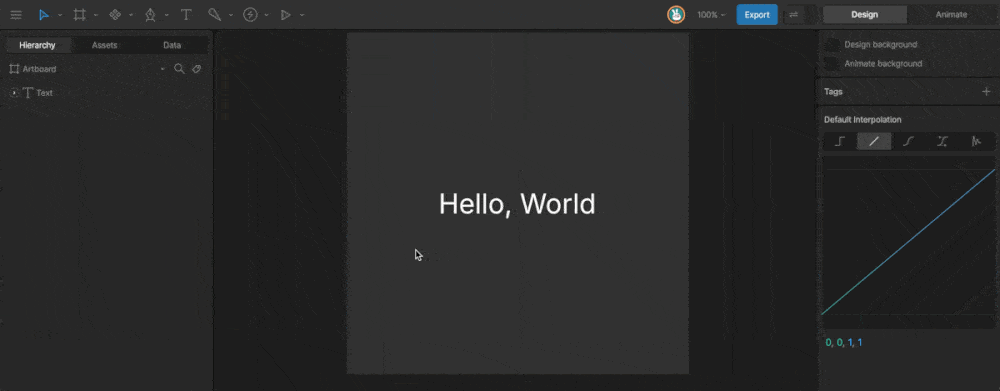

Create Text Modifier Groups via the Inspector
Modifier Range
Range
The modifier range defines the start and end point within the text for the applied properties. The range can be a percentage or an index value for a character, word, or line. Open the Range Options fly-out to configure the value increment type.
As an example, a range with a start point of 0% and an end value of 50% will only apply the defined properties to the first half of the text. So if we opt to add a scale property with a value of 25% to the modifier group — only the glyphs in the first half of the text will have the scale value of 25%.
You can see a visual representation of the range via a shaded area on the stage. You can configure the stage visual options in the visibility menu on the toolbar.

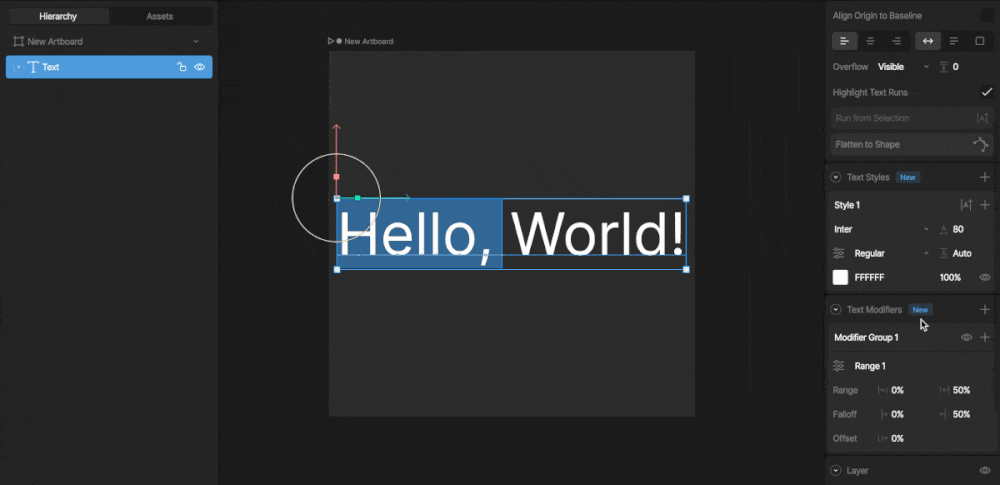

Apply transforms to the target text range
Falloff
Use the falloff values to add interpolation to the applied modifier properties. For example, a modifier group that scales glyphs to 200% with a range from 0% to 100% and a falloff of 25% to 75% will gradually scale glyphs up form 100% to 200% over the first quarter of the text, and back down again over the last quarter of the text.
The falloff can be visualised via the darker shading on the stage guide.

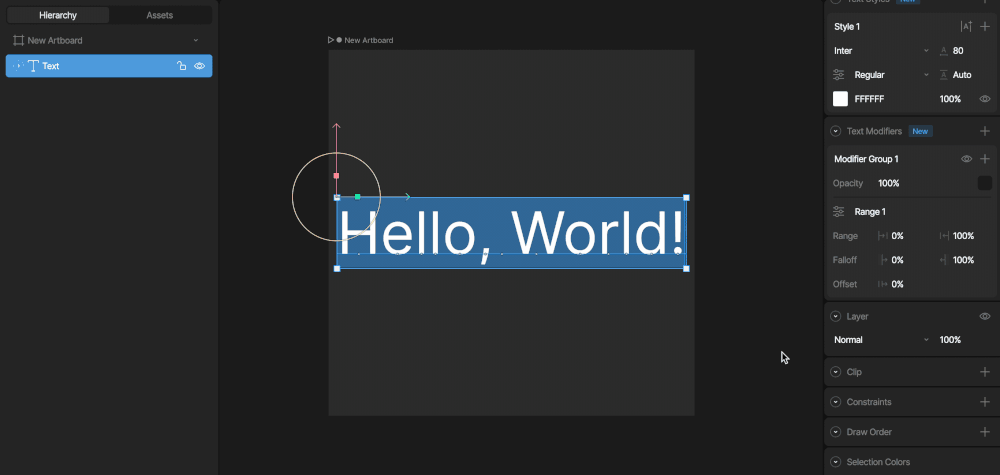

Use falloff to interpolate applied modifier properties
Offset
Use the offset value to traverse the range along the text value. Try animating the offset value to create wipe effects along a text value. For example, a scale modifier can animate the offset to make individual glyphs scale up and back down again.
Range Options
Additional range options can be found in the fly-out alongside the range name for more fine-grained control over the range selection behaviour.
Increment
Define whether modifier properties get applied by:
Characters (with or without spaces)
Words
Lines
The increment value will affect an index-based Range Type.
Mode
Change the range mode to define how modifier properties should be calculated when multiple ranges on the same group cross over. For example, if a modifier with multiple ranges applied a scale value of 200% — an add mode would increase the scale to 400% if the ranges were to crossover.
Turn on Modifier Range Values in the visibility menu to get a numerical indication of how much a Text Modifier is affecting glyphs.
Strength
Adjust the strength to reduce the effect of a modifier within the range.
Range Type
Set the range type to configure range start, end, and offset values as a percentage of the text length, or by indices. You may also want to consider which increment value to use alongside the Range Type. For example, an index value of 1 incremented by characters will target the second character, whereas an index value of 1 incremented by words will target the start of the second word.
Falloff Interpolation
Modify the falloff interpolation to define a custom cubic curve. The falloff defaults to linear interpolation.

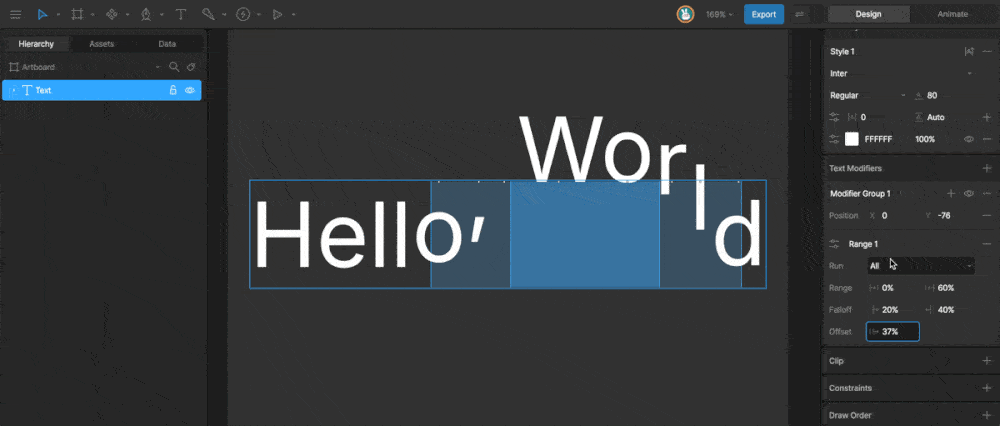

View Options
Toggle visual guides on the stage via the visibility menu in the toolbar:
Modifier Range: Toggle the display of a shaded area on the stage to highlight the range position on a selected text object.
Modifier Range Values: Toggle the display of per-glyph values on modifier ranges to indicate the applied strength of a given modifier.
